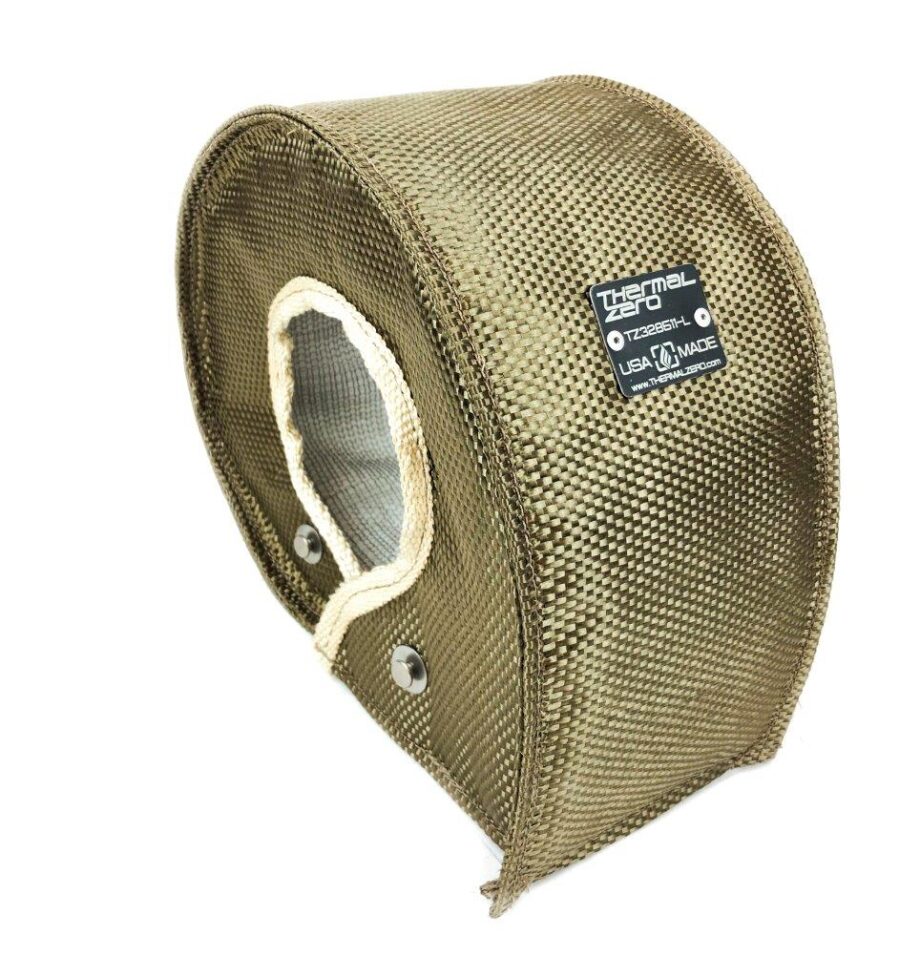

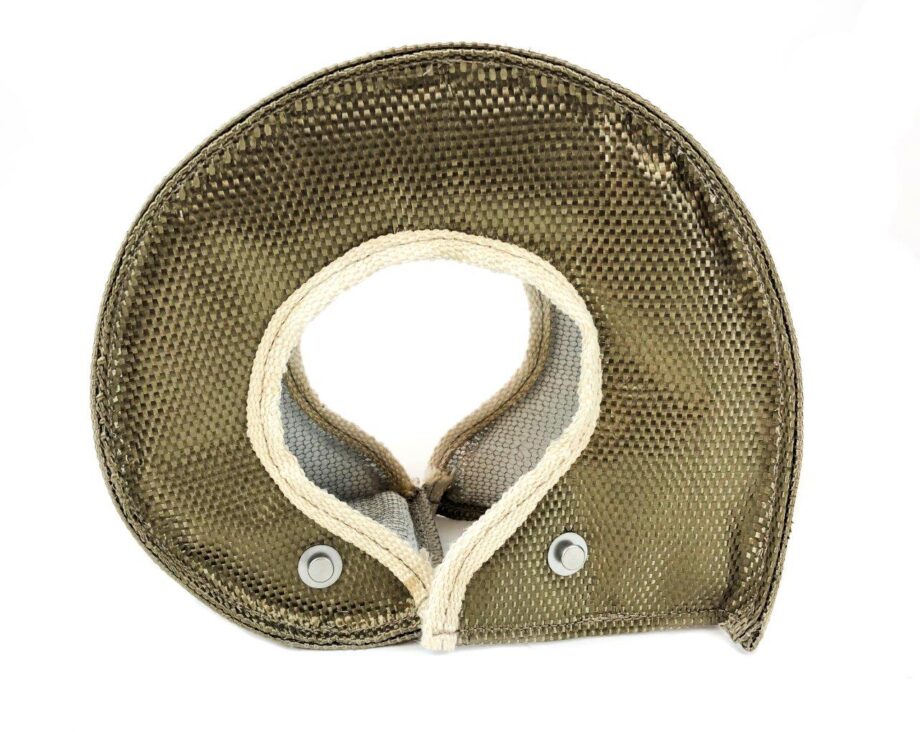

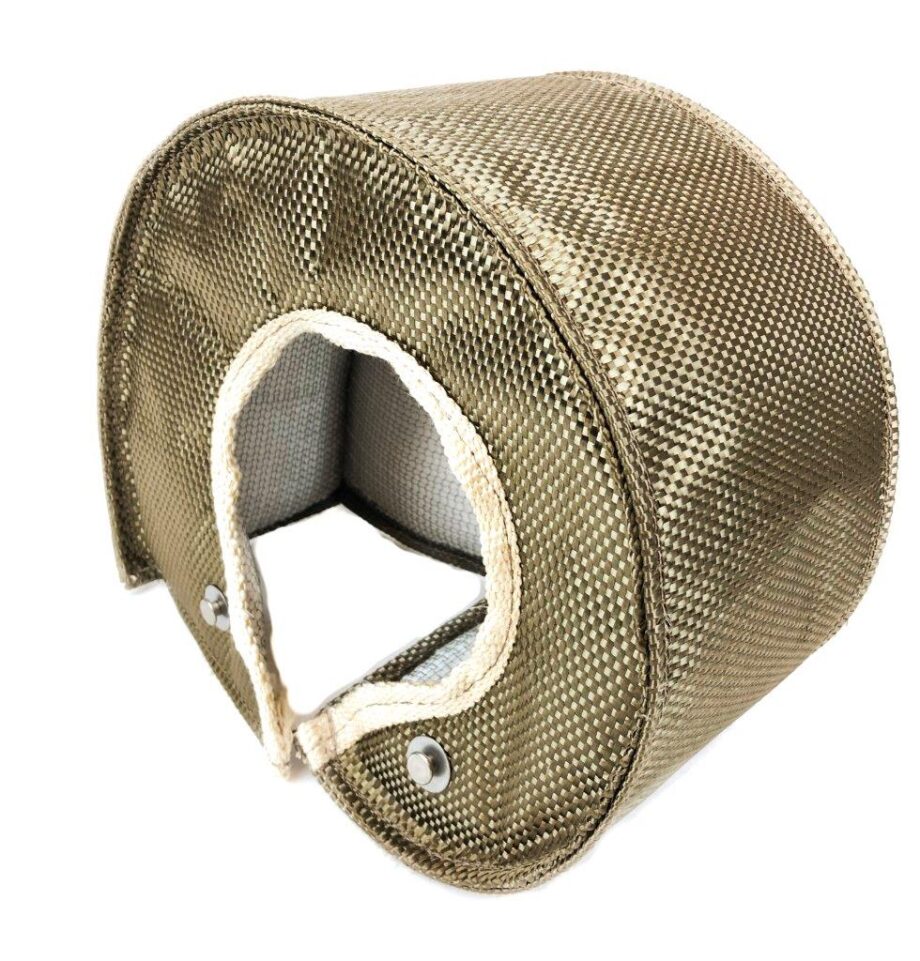

Borg Warner S400 series T6 Turbo blanket – LAVA
$ 95.18
- Considering some the Borg Warner S400 series housings are a very odd size (too small to fit a T6 blanket and too big to fit the T4 blanket) we designed a blanket just for the majority of the big boy S400 turbine housings. This blanket is specifically created to fit the larger T6 S400 and S480 housings that the TZ32258 blanket won’t quite cover. This blanket is still intended for use on externally wastegated applications. Thermal Zero turbo blankets go above and beyond when it comes to heat tolerance and durability. The inner layer of the turbo blanket can handle over 2500 degrees Fahrenheit of direct heat. The blankets are made with high quality 1 inch thick 6 pound density ceramic insulation material. Our Lava line of blankets are different from our other turbo blankets in that they feature an outer jacketing that is made from an extremely heavy duty and high quality pulverized lava rock fiber instead of silica impregnated fiber. This lava material is actually different than what any other turbo blanket manufacturers use in that it features an aluminum bonded layer on the inside of the blanket to further reflect the small amount of radiant heat which makes it through the ceramic layer. With this combination of materials we have seen up to 90% efficiency out of a Lava blanket on certain applications. Due to the durability and extremely high heat rating (3000°F) of the Lava material; this blanket is ideal for applications where there is top mount turbo manifold or or heat sources which could come in contact with the outside of the blanket. Since vibration on a turbocharger is inevitable we have created a more durable design. Our turbo blankets feature a knitted wire mesh inner layer that separates the insulation material from the turbocharger housing, greatly increasing durability and reducing breakdown. Installing a Thermal Zero Lava Turbo blanket will cut down up to 90% of direct heat emitted from your turbocharger. In turn this will allow the turbo to spool faster and be more efficient. Not sure if this blanket will fit your turbo. Check the known good fit turbo models below or measure your turbo and check the measurement picture above to verify it will be a good fit. Suggested Turbocharger Models: BORGWARNER 1.45 A/R T6 TURBINE HOUSING (96mm) (14961016101) BORGWARNER 1.58 A/R T-6 TURBINE HOUSING (96MM)(14961016100) BORGWARNER S400 T6 1.32 A/R TURBINE HOUSING (177216) BORGWARNER S400SX4 171702 (S475/96/1.32) VS Racing S400 T6 Turbine Housing ST07-400-X80 VS Racing S400 T6 Turbine Housing ST07-400-X88 VS Racing S485 T6 Turbine Housing VSR85T6BLT VS Racing S488 T6 Turbine Housing VSR88BLT103
