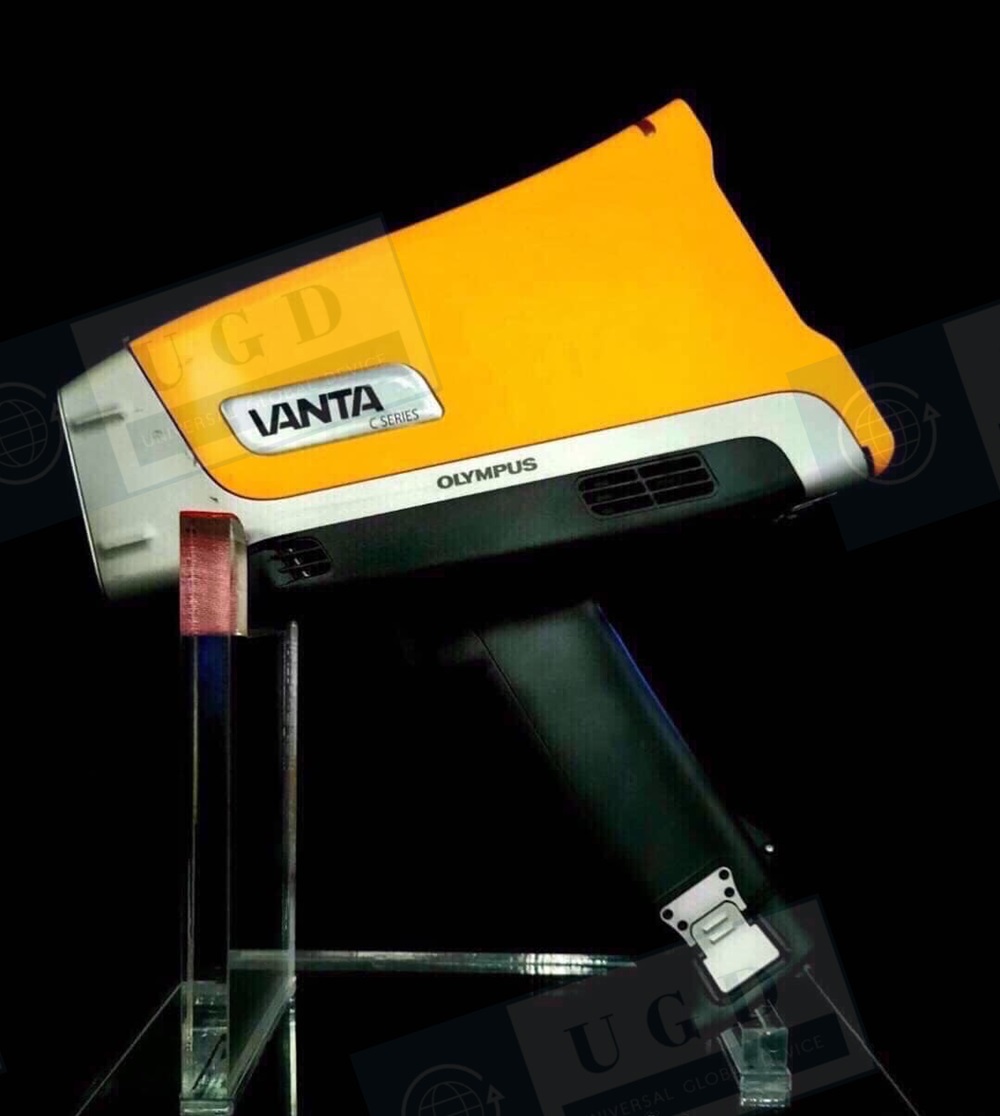

Olympus Vanta C XRF Analyzer
$ 92.34
- Olympus Vanta C XRF Analyzer Olympus Vanta C XRF Analyzer is our most advanced handheld X-ray fluorescence (XRF) device for customers who demand laboratory-quality results in the field. It provides rapid, accurate elemental analysis and alloy identification for high-throughput XRF testing. Features: Exceptional durability under extreme conditions Analytical excellence Optional Wi-Fi and Bluetooth for real-time data sharing Intuitive user interface Specifications Dimensions (W x H x D) 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) Weight 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery Element: 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery Excitation Source 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W)) (Rh W): 8–40 kV Primary Beam Filtration 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot Detector Silicon drift detector Power Removable 14.4 V Li-ion battery with hot-swap capability or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control Operating Environment −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity non-condensing Drop Test Military Standard 810-G 4-foot (1.3 M) drop test IP Rating and Detector Shutter IP55: dust protected and protected against water jets from all directions Pressure Correction Built-in barometer for automatic altitude and air density correction GPS Embedded GPS / GLONASS receiver Operating System Linux Cloud enabled with user fleet manager capability Data Storage microSD™ slot with removable 1 GB industrial SD card included USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer. Wireless LAN Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor Bluetooth Supports Bluetooth with an optional USB adaptor Aiming Camera Full VGA CMOS camera (Optional) Sales Included : 1 – OLYMPUS VANTA C SERIES HANDHELD XRF ANALYZER 2 – REMOVABLE 14.4 V LI-ION BATTERY 1 – UNIT STRAP 1 – DOCKING STATION 9 – REPLACEMENT WINDOWS 1 – AC ADAPTER/CHARGER 1 – POWER CORD 1 – HARD CARRYING CASE
