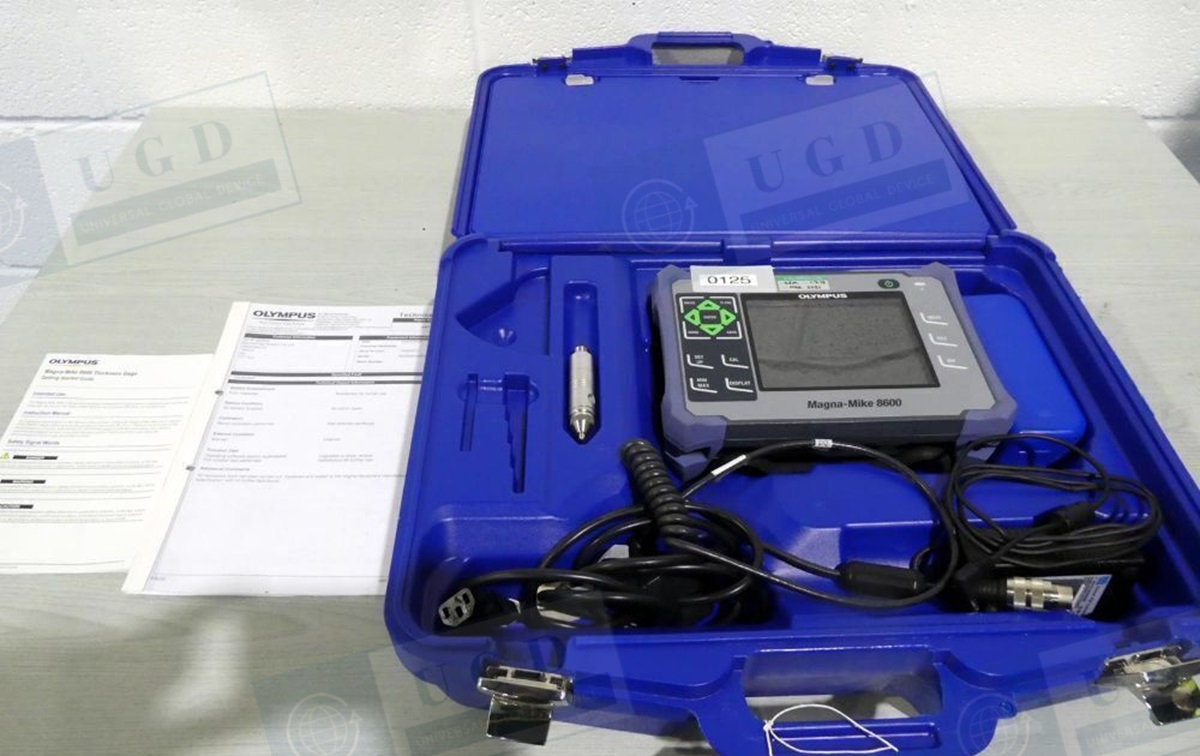

Olympus Magna Mike 8600 Thickness Gauge
$ 96.48
- Olympus Magna Mike 8600 Thickness Gauge Olympus Magna Mike 8600 Thickness Gauge is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe’s Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading. Reliable Thickness Measurements The Magna-Mike 8600 portable thickness gauge uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the gauge is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe’s Hall effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed as an easy-to-read digital thickness reading. Three Versatile Probe Designs The Magna-Mike thickness gauge is available with straight, right angle, and low-profile articulating magnetic probes. The 86PR-1 and 86PR-2 probes feature replaceable wear caps to extend their durability and reduce replacement costs Features Three new durable probe designs: –Straight, Right Angle, and Low-profile Articulating Replaceable Wear Caps –Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only) Expanded target selection –3/16 and 1/4 in. magnetic target balls –0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target Expanded thickness range up to 25.4 mm (1.00 in.) Larger Color VGA display RS-232, USB and VGA outputs Fast Measurement update rate 60 Hz Expanded alphanumeric data logger Save and Recall stored calibration files Ability to export file to MicroSD card in .txt and CSV formats New accessory kits (Calibration kits) –Standard up to 9.1 mm (0.360 in.) –Extended range up to 25.4 mm (1 in.) –Disk kit –Wire target kit –Low-profile probe
