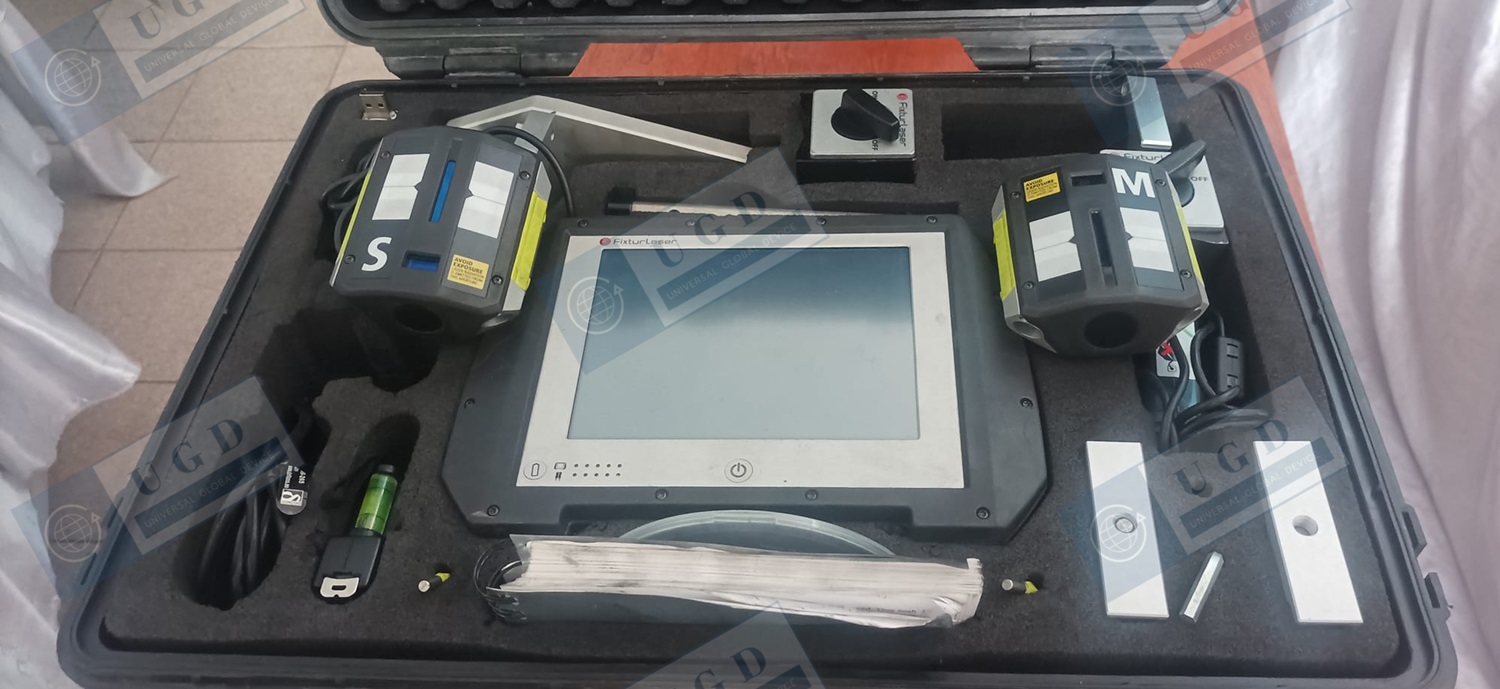

Fixturlaser NXA Pro Laser Shaft Alignment System
$ 90.77
- Fixturlaser NXA Pro Laser Shaft Alignment System Fixturlaser NXA Pro Laser Shaft Alignment System not only revolutionizes shaft alignment but also elevates the user experience with our advanced GuideU interface. This intuitive system ensures lightning-fast and straightforward operations while granting access to exceptional features. Moreover, it boasts one of the most robust power management systems on the market. But that’s not all. When you choose the Acoem NXA Pro, you also enjoy the peace of mind that comes with a lifetime warranty and a comprehensive system. Experience the future of shaft alignment, elevated by GuideU™ and backed by our commitment to quality. It is a shaft alignment revolution A revolution in shaft alignment as well as a revolution in usability with the NXA Pro – a digital laser based shaft alignment system! The NXA Pro aims to provide the user with a fast and simple operation, as well as having access to advanced functions and capabilities, such as the OmniView and the VertiZontal Moves, and probably the best power management system in the market place. Power Management System The NXA Pro has a power management system that will make your life so much easier! The display unit has a 10 hour continuous battery operating time, and should the need arise during an alignment job; the display unit can be express charged to an 80% capacity in one hour. The sensor units will last for 24 hours minimum thanks to the long-life batteries. Fixturlaser NXA Pro System Weight including all standard parts: 7,7 kg Dimension: 415 x 325 x 180 mm Display Unit Weight: 1,2 kg with battery Dimensions: 224 x 158 x 49 mm Environmental protection: IP 65 (Dust tight and protected against water jets) Display size: 6,5” diagonal (133 x 100 mm) Gyroscope: 6-Axis MEMS Inertial Motion Sensor with drift compen sation and automatic field calibration. Operating time: 10 hours continuous use (with 50% LCD backlight) Battery charging time (system off, room temperature): 1 hour charge – 6 hours operating time TD Units Weight: 192 g. Dimensions: 92 x 77 x 33 mm Environmental protection: IP 65 (Dust tight and protected against water jets) Measurement distance: Up to 10 m Detector: 2-nd generation Ultra HD CCD Detector length: 30 mm Detector resolution: 1 μm Measurement accuracy: 0,3% ± 7 μm Gyroscope: 6-Axis MEMS Inertial Motion Sensor with drift compens tion and automatic field calibration Operating time: 17 hours continuous use (measuring) Shaft Brackets Shaft diameter: Ø 25 mm … 175 mm; with extension chain Ø 25 mm … 450 mm Rods: 4 pcs 85 mm and 4 pcs 160 mm (extendable to 245 mm) Standard set Display unit, Fixturlaser M3, Fixturlaser S3, 2 pcs complete V-bracket, Ext. power cable, USB cable A-mini, Power supply, USB stick, 2 pcs Angled universal tool, 2 pcs Magnetic v-bracket, Magnetic base, Chain 8 mm 60 links L=970 mm, Rod kit, Extension fixture, Tape measure 5 m.
