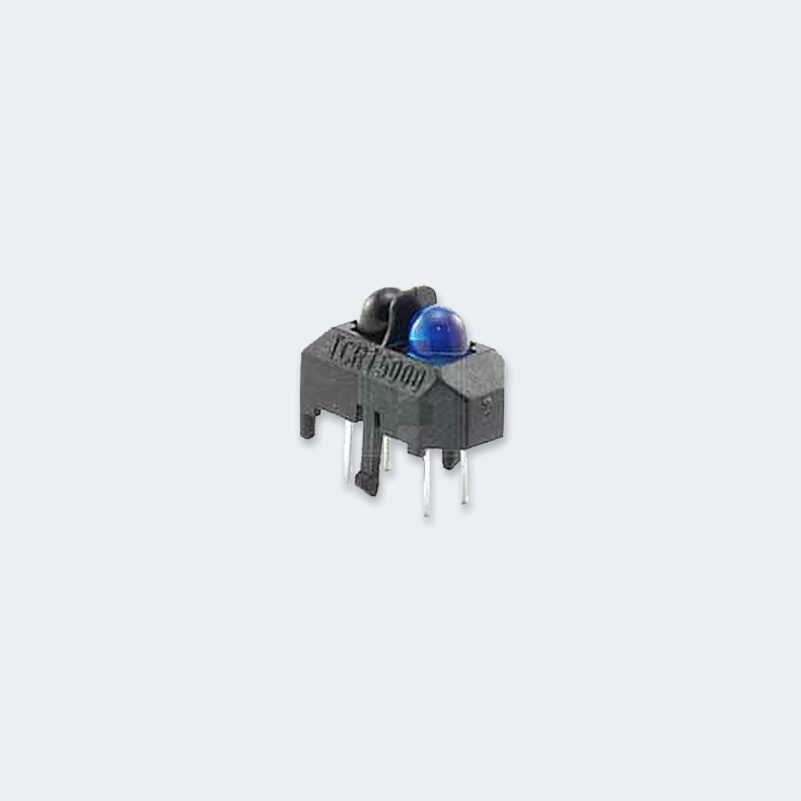

TCRT5000 Reflective Switch Sensor
$ 2.88
- TCRT5000 Reflective Switch Sensor The TCRT5000 is a 950 nm and 60 mA Reflective Optical Sensor with Transistor Output, available in long lead Through Hole Version. Features: Package type: leaded Detector type: phototransistor Dimensions (L x W x H in mm): 10.2 x 5.8 x 7 Peak operating distance: 2.5 mm Operating range within > 20 % relative collector current: 0.2 mm to 15 mm Typical output current under test: IC = 1 mA Daylight blocking filter Emitter wavelength: 950 nm Lead (Pb)-free soldering released Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Applications: Position sensor for shaft encoder Detection of reflective material such as paper, IBM cards, magnetic tapes etc. Limit switch for mechanical motions in VCR General purpose – wherever the space is limited نعتذر الشراء من الموقع متوقف مؤقتا We apologize : purchasing from our website is temporarily stopped
