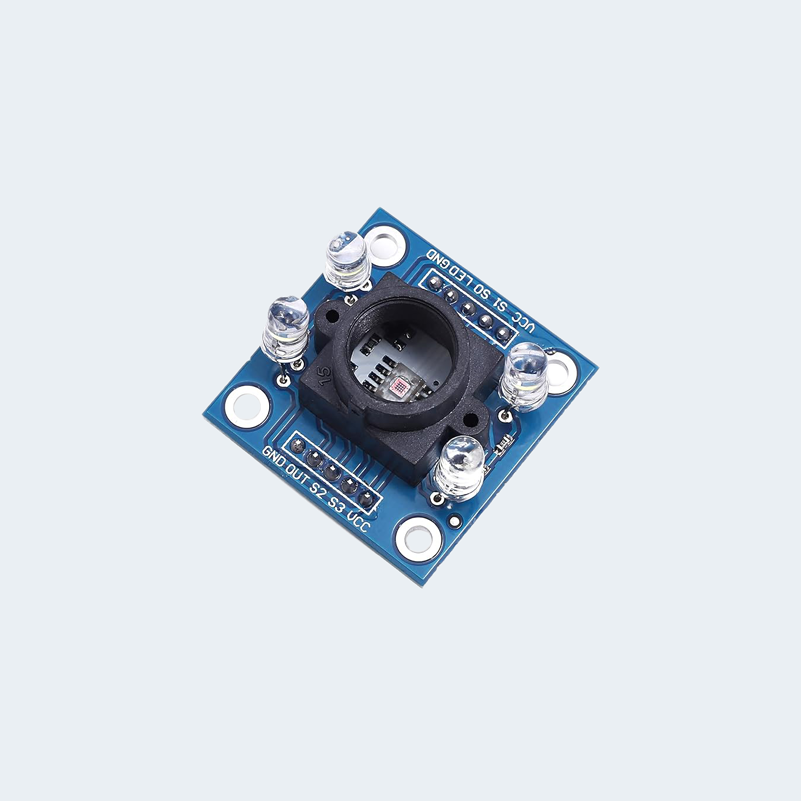

GY-31 TCS3200 Color Sensor
$ 9.36
- GY-31 TCS3200 Color Sensor Using imported chips TCS3200TCS3200 is TCS230 upgrade, better power supply 3-5v resistance to light interference white LED, can control the light, off. Use bright white LED lights Can be connected directly with Microcontroller Static detection of the measured object color The TCS3200 color sensor uses 64 photodiodes to detect color. The output of this sensor is a square wave. Color intensity is obtained directly from the frequency of the square wave. These 64 photodiodes consist of 16 diodes with red filter, 16 diodes with green filter, 16 diodes with blue filter and 16 transparent photodiodes without filter. All 16 diodes of each type are connected in parallel. To detect any color, the photodiodes corresponding to that color are activated. This Module has the following pins: VCC: Module power supply – 2.7V to 5.5V GND: Ground OUT: Output signal Control pins: S0: Output Frequency Scaling Selection Input S1: Output Frequency Scaling Selection Input S2: Photodiode Type Selection Input S3: Photodiode Type Selection Input LED: LED control نعتذر الشراء من الموقع متوقف مؤقتا We apologize : purchasing from our website is temporarily stopped
