Camera module for Arduino OV7670
$ 18.00

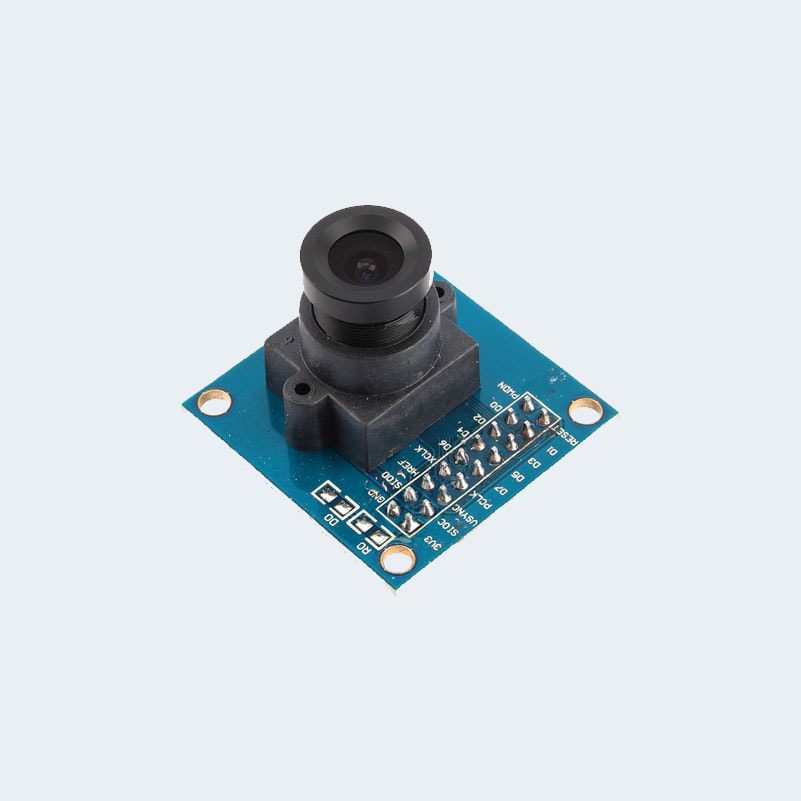

- Camera for Arduino OV7670 The OV7660 camera module is a low cost 0.3 mega pixel CMOS color camera module, which is compatible with OV7670 module that can output 640×480 VGA resolution image at 30fps. The OV7660 camera module build in onboard LDO regulator only single 3.3V power needed and can be used in Arduino, STM32,Chipkit, ARM, DSP , FPGA and etc. For more information how to use camera modules. Product Features: Optical size 1/5 inch Resolution 640×480 VGA Onboard regulator, only single 3.3V supply needed Standard 0.1inch (2.54mm) pin pitch header connector Mounted with high quality F1.8 / 8mm lens Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats High sensitivity for low-light operation Low operating voltage for embedded portable apps Standard SCCB interface compatible with I2C interface Supports image sizes: VGA, QVGA,QQVGA,CIF,QCIF,QQCIF Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC) Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming نعتذر الشراء من الموقع متوقف مؤقتا We apologize : purchasing from our website is temporarily stopped
