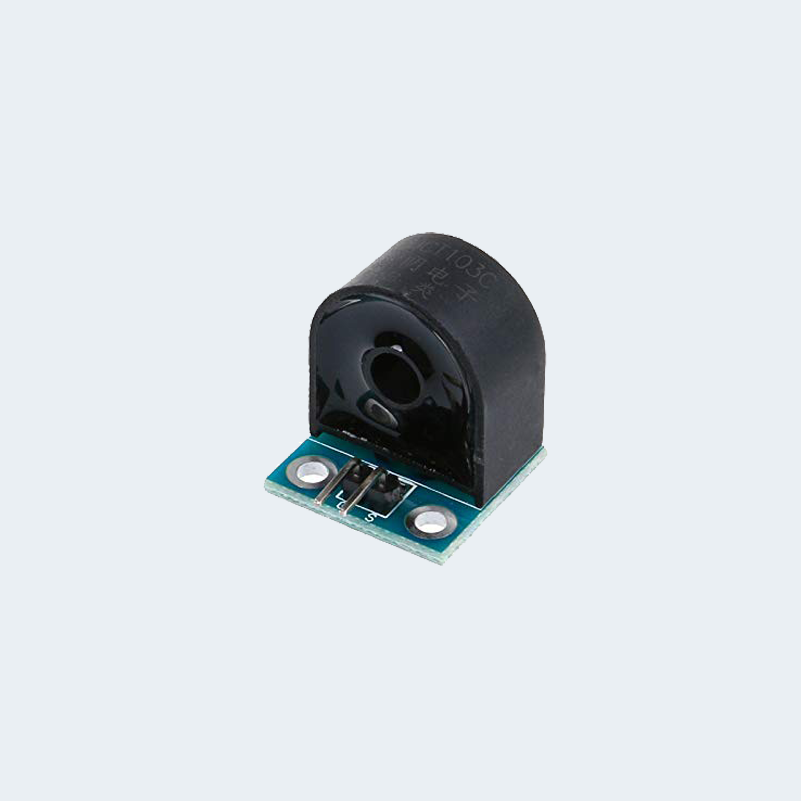

Current Transformer Module ZMCT103C 5A Single Phase Analog AC Current Sensor
$ 6.96
- Current Transformer Module ZMCT103C 5A Single Phase Analog AC Current Sensor This Current Transformer module is capable of measuring AC current up to 5A. It features the ZMCT103C series of small, high-precision current transformers and sampling resistors, making it suitable for acquiring AC current signals within the 5A range. Its compact size allows it to be embedded and used in space-constrained environments. The module provides an analog current output, measuring AC currents up to 5A, with a corresponding analog output of 5A/5mA. Specifications include a rated input current of 5A, an output current of 5mA, a linear range of 0-10A (100Ω), and a linearity of 0.2%. For usage, the wire being measured passes through the round hole of the transformer, and S and G are connected to the oscilloscope. The amplitude of the waveform increases with the measured current. نعتذر الشراء من الموقع متوقف مؤقتا We apologize : purchasing from our website is temporarily stopped
