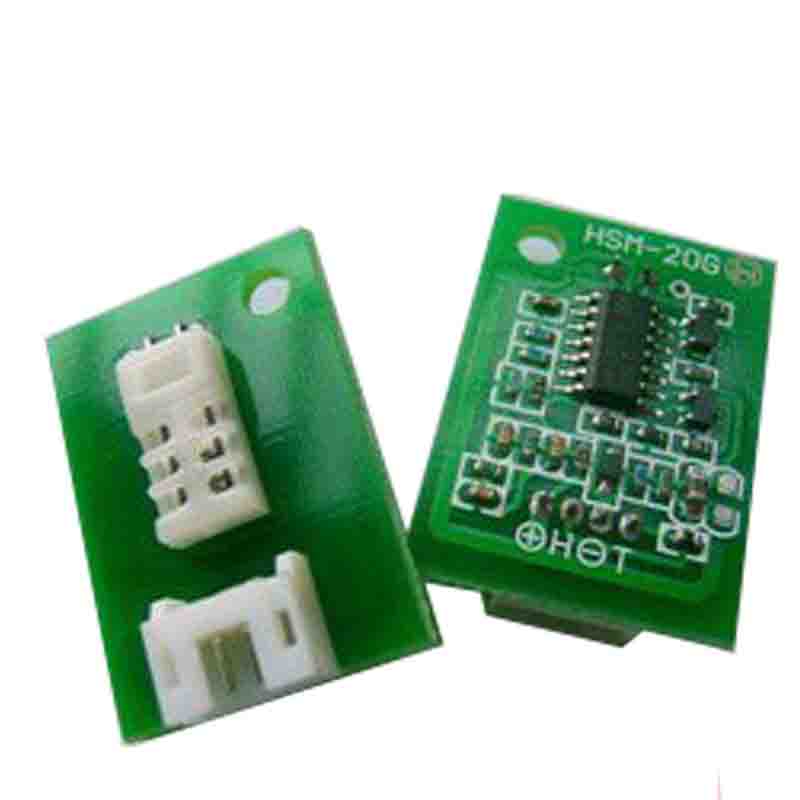

HSM-20G Humidity And Temperature Sensor
$ 6.61
- The module of HSM-20G is essential for those applications where the relative humidity can be converted to standard voltage output. Applications Humidifiers & dehumidifiers Air-conditioner Humidity data loggers Automotive climate control Other applications Specifications Characteristics: HSM-20G Input voltage range: DC 5.0±0.2V Output voltage range: DC 1-3.19V Measurement Accuracy: ±5% RH Operating Current (Maximum): 2mA Storage RH Range: 0 to 99% RH Operating RH Range: 20 to 95% (100% RH intermittent) Transient Condensation: < 3%RH Storage: -20℃ to 70℃ Operating: 0℃ to 50℃ Hysteresis (RH @ 25℃): MAX 2%RH Long Term Stability(typical drift per year): ±1.5% Linearity: Linearity Time Response(63% step change): 1 min Dimensions(L*W): 34mm*22mm*9mm
