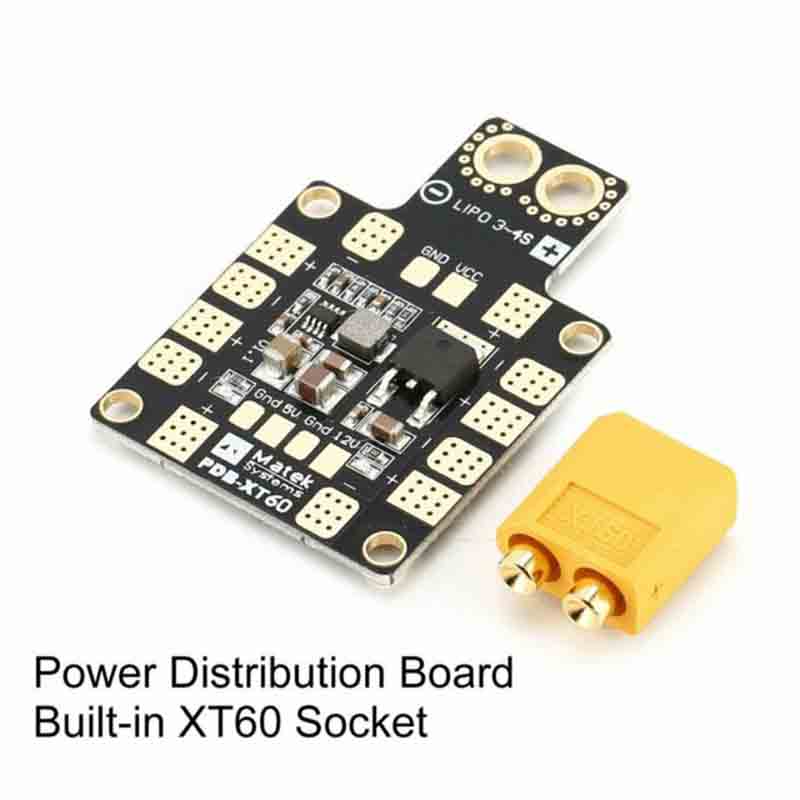

PDB-XT60 Power Distribution Board 5-12V for FPV Racing Quadcopter Matek
$ 5.51
- Specifications: General: – Input voltage range (3S-4S operation): 9 – 18VDC – Regulated 5V and 12V outputs – LED power indicators ( 5V & 12V outputs ) – 4 ESC outputs ESC outputs: – Continuous current: 20A per output – Peak current (10 seconds/minute): 25A per output BEC 5V output: – Designed for RC Receivers, Flight controllers, OSD, and Servos. – DC/DC synchronous buck regulator, Efficiency is up to 95%. – Voltage: 5.0 /- 0.1VDC – Continuous current: 3 Amps – Short-circuit tolerant (10 seconds/minute) – LED (indicates voltage is in regulation) BEC 12V output: – The battery should be 4SLiPo – Standard output designed to power cameras and video transmitters, etc. – Voltage: 12.0 /- 0.2VDC – Continuous current: 2 Amps (Max.3A 10s/minute) – Short-circuit tolerant (10 seconds/minute) – LED (indicates voltage is in regulation) About the FPV Sponge Mat Landing Skid Pad Gear: 1. Super light, strengthen shockproof,anti-static. 2 .Great for mini quads from 180mm to 300mm in size, great replacement pads for quadcopters like QAV210 QAV250 QAV-R 180 220 260
