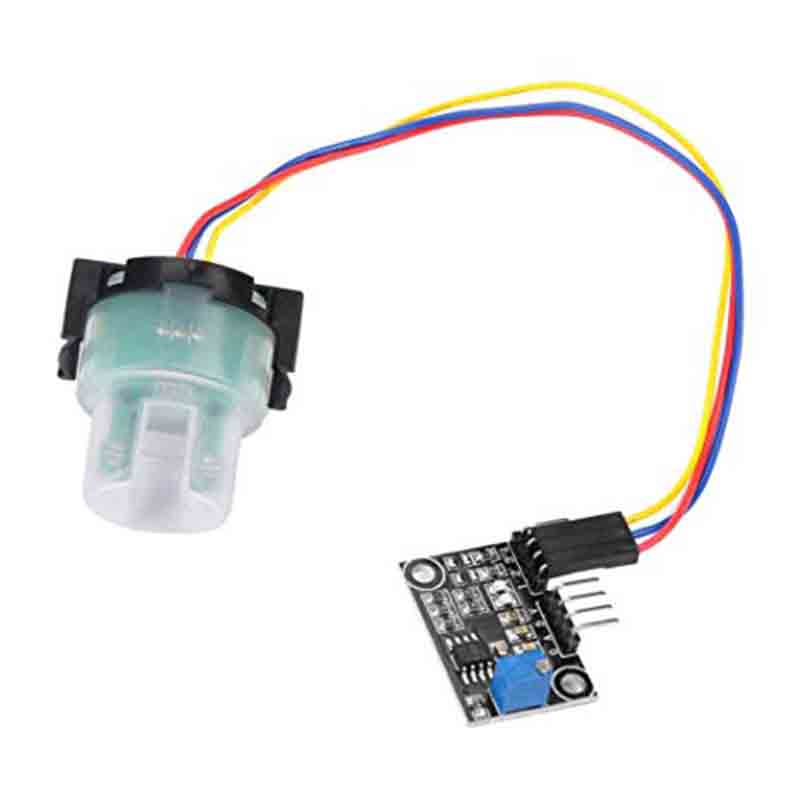

Electronics Turbidity Sensor Liquid Suspended Particles Turbidity Detection Module
$ 18.00
- Product Information: Product Name: Turbidity sensor module kit Description: Turbidity sensors is the use of optics , through the liquid solution and scattering rate of transmittance integrated to determine the turbidity case , since the amount of haze value is gradual , usually detected in a dynamic environment , the turbidity sensor acquisition value , the need for external control for AD conversion , the conversion to obtain the corresponding environment turbidity situation, so that the sensor can also need to produce a peripheral circuit detected in the system , with a waterproof probe , mainly used in washing machines, dishwashers and other equipment turbidity testing can also be used on electronic design, graduate design, electronic competition experiments and other applications. Technical parameters: 1, Working voltage: DC5V 2 , Operating Current : 30mA (MAX) 3 , Response time : <500ms 4 , Insulation Resistance : 100M [Min]; 5, the output way: Analog output 0-4.5V 6, the output way: high / low signal( High : 5V Low : 0V) 7 , operating temperature : -30 oC -80 oC; 8 , Storage temperature : -10-80 oC. 9, Weight : 55g 10 , Size : 30mm * 20mm * 12mm Applications: Washing machines, dishwashers , industrial control , environmental sewage collection and so on turbidity measurement and control needs of the occasion ; Stay after purchase mailboxes sensor manual, as well as provide technical guidance services , does not provide product development and programming services .
